SPECIFICATIONS

Battery Included: Yes

Brand Name: MOES

Certification: CE

Hign-concerned Chemical: None

Origin: Mainland China

Voltage: 110-240V

Wattage: other

is_customized: Yes

ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor Hub Required Powered by Charger Tuya Smart Life APP Alexa Google Home Voice Control By Moes

2020 New Arrival Upgraded with More Personalized Points:

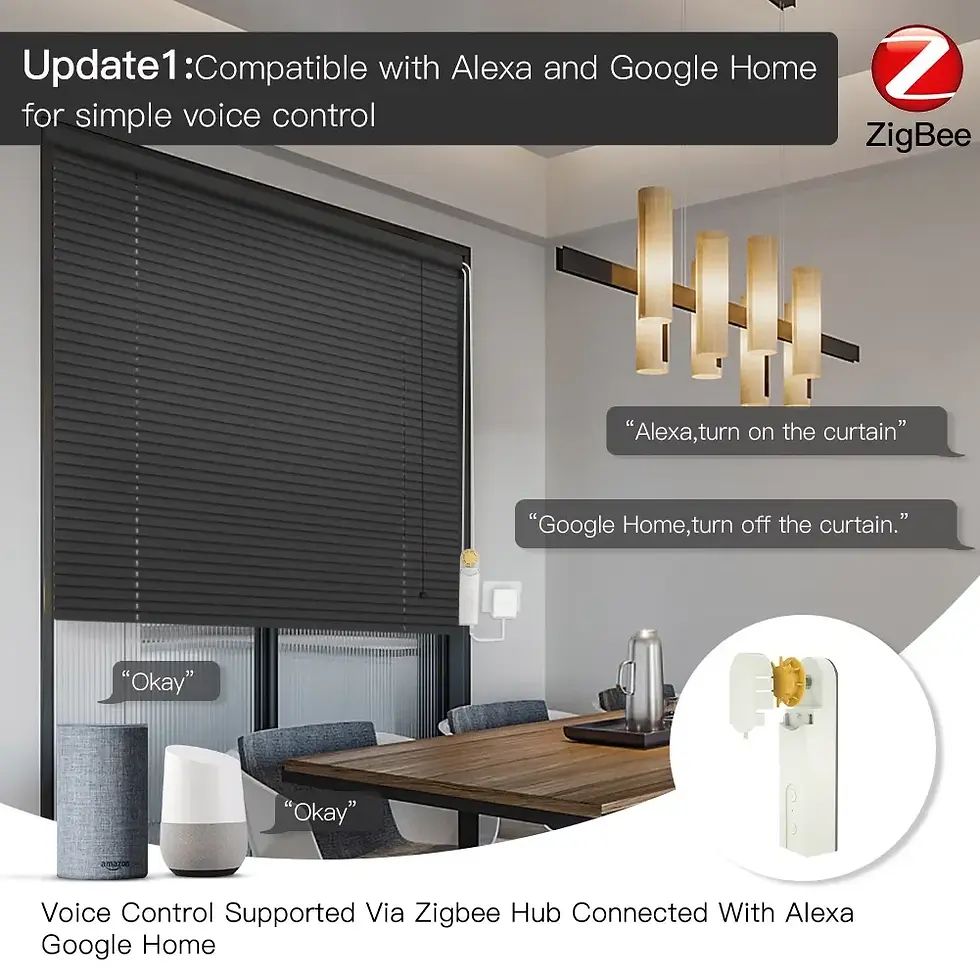

Update1:New ZigBee version with Alexa and Google Home for voice control supported. Update2:Ulimitset and dimitset available in APP Update3:ZigBee smart version with ZigBee hub required in Tuya Smart Life APP for easier wireless remote control NOTE:After the motor is turned on, press the power button + down button at the same time, the blue indicator light flashes three times quickly, and it enters the network configuration state. Main Features: 1.Smart Home Automation with ZigBee Hub Required: ZigBee protocol built-in requires a ZigBee hub connected before normal use.Automate your existing blinds, shades, curtains in the simplest and most cost-effective way. Motor can set upper & bottom limit positions and limits can be saved even when power off. Motor speed can be adjustable in Smart Life Tuya APP. Simply add motorized shades to your smart home with Smart Blinds Drive Motor!Compatible with a variety of shades, blinds, curtains, and drapes with the new update manual.(Note:The ZigBee hub is not included in the package,you need a separate purchase in our online store.) 2.New upgraded with Alexa and Google Home supported for simple voice control of connected devices to turn on/off them in a much easier way.(Note:Pay attention to the command with turn on/off available,not open/close.) 3.Control via Smart Life Tuya App Freely: Control your new smart blinds directly with Tuya Smart Life App or its intuitive Touch Strip controls. Even you want to move your blinds from your bed,your couch or with one touch on Gear.Wireless remote control your connected devices anywhere you like with ZigBee hub connected in advance. 4.Li-battery Charging: Powered by charger(adaptor is included) ensures long time continuous working with the large battery capacity.Even save more money and energy low power consumption.  5.Set schedule and timer of your blinds independently.Set custom schedules and accurate timers to your own need.No installers or a degree in rocket-science required. Easily install and setup Blinds Drive Motor in minutes. Works with any plastic beaded chain or metal beaded chain that is looped. Parameter:

Model:AM43-0.45/40-ES-EB

Input Power:DC charger 8.4VDC

Lock-rotor current:1.8A

Speed Range:20-40rpm

Torque:0.45Nm

Rated Current:1A

Battery Capacity:7.4VDC/1000mAh

Frequency:2.4GHz

Password:8888 Load Bearing:3.5 KG

Packing Listing:

Moes Smart Blinds Drive Motor*1

Adapter*1

Screw*2

Gear*3

3M VHB*1

Q&A:

1. Q:May I share the control with family members to control the blinds together?

  A:Yes,this new update version is compatible with Smart Life Tuya App that supports device share to your family members for added convenience.

1. Q:Does the motor work with Google Home or Alexa?
